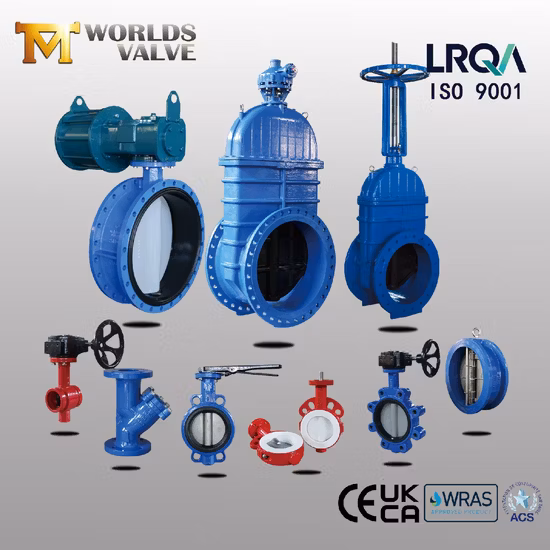

OEM ODM PTFE PFA Coaed Disc CF8 CF8m SS304 SS316 Wcb Bronze API ANSI DIN JIS BS Standard Control Butterfly Valve Gate Valve Check Valve Y Strainer

Basic Info.

Model NO.	CBF02-TF01
Structure	Centre Sealing
Seal Form	Auto Sealed
Valve Stem	Normal
Work Pressure	Low Pressure (Pn<1.6mpa)
Working Temperature	Medium Temperature (120°C<T<450°C)
Material of Seal Surface	Soft Sealed
Valve Body	Casting
Standard	API609 En593 BS5155 En1092 ISO5211
Application	Industrial Usage, Water Industrial Usage, Household Usage
Coating	Fbe Epoxy Coated
Seat Material	NBR/EPDM/PTFE/Viton/Silicone etc
Face to Face	En558;API609;DIN3202;ISO5752;BS5155;Awwa
End Standard	Pn6/10/16/25/21/150lb/JIS5K/10K/As2129 Table D/E/F
Body Material	Cast Iron/Ductile Iron/Wcb/CF8m/CF8/Al-Bronze
Disc Material	Di/Nylon/1.4469/1.4529/Saf2205/2507/CF8/CF8m etc
Power	Manual, Electrical, Pneumatic
Transport Package	Plywood Case or Carton
Specification	DN50-DN3000
Trademark	WDS / WORLDS/OEM
Origin	Tianjin China (Mainland)
HS Code	8481804090
Production Capacity	10, 000, 000PCS/Year

Packaging & Delivery

Package Size 110.00cm * 110.00cm * 90.00cm Package Gross Weight 500.000kg

Product Description

Product Feature:
Resilient seated butterfly valve is a Double Flanged design which can be used for dead-end service. This butterfly valve series has many of the design features and benefits , such as high Cv ratings, minimum parts exposed to the line media, greater reliability and a proven record of long service life. A major design advantage of this valve product lines is international compatibility.
Material :

BODY	CI, DI, WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, C95400, C95800, SAF2205, SAF2507, F51, 1.4529^^
DISC	CF8, 304, CF3, 304L CF8M, 316, CF3M, 316L, SAF2205, SAF2507, F51, 1.4529, C95400, C95500, C95800, MONEL^..
SEAT	BUNA-N, NBR, EPDM, HYPALON, NEOPRENE, VITON, FKM, PTFE, RPTFE, TEFLON, NATURAL RUBBER^^
STEM	F410, F420, F430, F431, F304, F316, MONEL 400, MONEL K500^^

Technical Parameters:

Size	DN32-DN600	DN650-DN3000
Working pressure	16Bar	10Bar
Shell	24Bar	15Bar
Seal(Air)	6Bar	6Bar
Operating Temperature	-40ºC~+160ºC
Operating Environment	Ballast and bilge system Chemical processingDesalination plants Drilling rigs Drinking waterDry powder Food and beverage Gas plantsHAVC Mining industry Paper industry Sand handling Seawater Sugar industryThermo technical water treatment Waste water
Driving method	Hand Lever Worm Gear Electric Pneumatic

**COMPANY INTRODUCTION

**Company Goal : OEM service for world-famous valve brand

**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc

**Dimension Measurement &Inspection

**Assembly Workshop

**Packaging

**Certificates -- CE ISO WRAS ACS certificates
