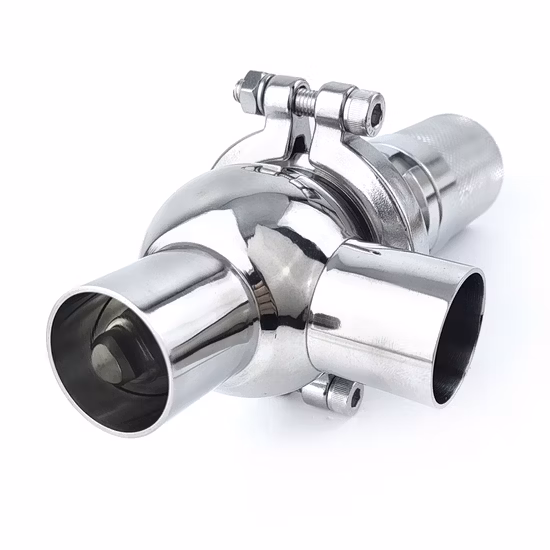

ISO Sanitary Stainless Steel SS304/SS316L Three

ISO Sanitary Stainless Steel SS304/SS316L Three

Product Name: Sanitary Stainless Steel Three Piece Welded Manual Ball Val ve Application: This type valve series is manu
Basic Info.
Model NO. RQ0103
Structure Fixed Ball Valve
Type Fixed Ball Valve
Function Blow-Down Valve
Temperature Low Temperature
Application Water Industrial Usage, Food, Beverage, Pharmaceutical, Chemical Industry
Steel Parts Stainless Steel 304, 316L
Design Standard ISO5211, ISO 2037-92
Sealing Elements Vmq, FPM, EPDM, PTFE
Transport Package in Carton, Plywood Case
Specification ISO
Trademark NUOMENG, OEM
Origin Wenzhou, China
HS Code 8481804090
Production Capacity 200000PCS/Year
Product Description

Product Name: Sanitary Stainless Steel Three Piece Welded Manual Ball Valve
Application:
This type valve series is manually, it used to control the material transfer, which is widely used in food, beverage, pharmaceutical and chemical industrial piping system, to regulate and control the medium flow in the system.
Working principle:
This kind of valve can be operated through actuator (90 degree rotary handle), its actuator or manually with the hand is to revolve the axial movement unto 90degree, so the valve can open or close. The actuator have three type.
Multi-position handle can use to 15 degree adjustment of valve there is 12seat to lock open or close, In that way, the valve can control the flow.
Pulling handle can use to the 4 multi-function to lock open or close. In that way, the valve can control the flow.
Material: Steel parts: 304 stainless steel, stainless steel 316L
Seal: VMQ, FPM, EPDM, PTFE
Standard design: ISO. Our company offers other standard, such as 3A, DIN, IDF, RS/RJT, ASME/BPE, ETC.
The parts of valve usually include: Valve body which divided into two parts, the ball with through cavity, valve stem and control sets(handle/actuator)etc.
Connection: Weld, Our company also offers clamp, weld/clamp, etc.
ISO-NO.RQ0103 Size Lengthouter diameterinner diameterG H LISO5211 S N.m
12.7 93 12.79.7 40.3 71 130 F03 PCD36 6X4
F04 PCD42 6X4
9 5.5
19 103.519.0516.05 42.3 73 130 F03 PCD36 6X4
F04 PCD42 6X4
9 5.5
25 11025.422.4 53.4 91.6 165 F04 PCD42 6X4
F05 PCD50 7X4
11 11.8
32 12031.828.8 58.4 96.6 165 F04 PCD42 6X4
F05 PCD50 7X4
11 14.2
38 12938.135.1 70.8 104 190 F05 PCD50 7X4
F07 PCD70 9X4
14 19.0
51145 50.847.8 77.8110 190 F05 PCD50 7X4
F07 PCD70 9X4
14 23.7

Components:
Parts List
01Valve Cap10Nut
02Valve Body11Stopper Ring
03Ball Core12Gasket
04Valve Stem13Pull Handle
05Body Seal14Bolt
06Washer Gasket15Spring Washer
07V-seal Components16Nut
08Gasket17Nut
09Spring Gasket18Bolt
