Dismantling Joint Pipe Connector with Double 304 Flange Wholesale Price

Overview

Basic Info.

Model NO.	DN50
Sealing Material	EPDM
Standard of Flange	DIN Jid ANSI etc
Supply Ability	3000 Units Per Month
Color	as You Request
Model Number	Vssjaf/C2f
Technics	Forged
Brand Name	Ruixuan
Shape	Round
Body Material	Carbon Steel
Transport Package	Wooden Case
Specification	DN65-DN3200
Trademark	OEM
Origin	Henan, China
Production Capacity	1000000per Year

Packaging & Delivery

Package Size 100.00cm * 100.00cm * 100.00cm Package Gross Weight 40.000kg

Product Description

Product Description

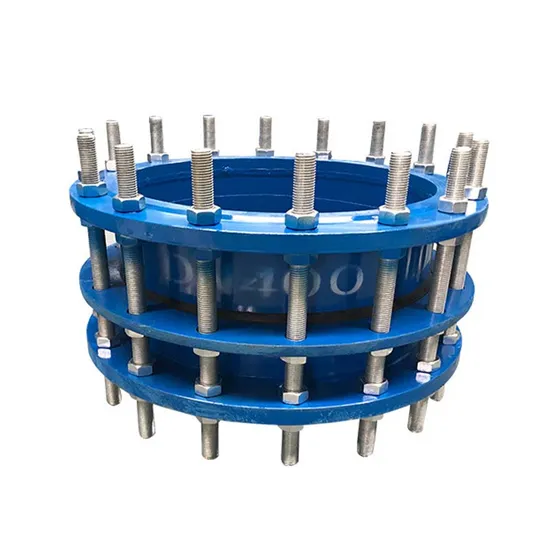

Double flanged loose sleeve force transfer joint, type VSSJAF(1990 standard) or C2F(2007 standard), consists of flanged loose sleeve
expansion joint, short pipe flange, force transfer screw and other components. It can transfer the pressure thrust of the connected parts (blind
plate force) and compensate the installation error of the pipeline, can not absorb the axial displacement, mainly used for the loose sleeve
connection with the pump, valve and other accessories.
: easy to install, easy to install the valve, can withstand the pipeline axial tension.

Product Parameters

PN1.0MPa

DN	DW	flange connection size				total length	installation size	Regulating quantity
		D flange outer diameter	K Bolt hole center circle diameter	Bolt apertured0	bolt
65	76	185	145	18	4	330	200	20
80	89	200	160	18	8	330	200	20
100	114	220	180	18	8	330	200	20
125	140	250	210	18	8	330	200	20
150	168	285	240	22	8	340	200	20
200	219	340	295	22	8	340	200	20
250	273	395	350	22	12	340	200	20
300	325	445	400	22	12	370	220	25
350	377	505	460	22	16	370	220	25
400	426	565	515	26	16	380	220	25
450	480	615	565	26	20	380	220	25
500	530	670	620	26	20	380	220	25
600	630	780	725	30	24	420	240	25
700	720	895	840	30	24	420	240	25
800	820	1015	950	33	24	560	350	30
900	920	1115	1050	33	28	560	350	30
1000	1020	1230	1160	36	28	560	350	30
1200	1220	1455	1380	39	32	600	370	30
1400	1420	1675	1590	42	36	630	370	30
1600	1620	1915	1820	48	40	670	380	30
1800	1820	2115	2020	48	44	670	380	30
2000	2020	2325	2230	48	48	690	400	30
2200	2220	2550	2440	56	52	730	400	30
2400	2420	2760	2650	56	56	730	400	30
2600	2620	2960	2850	56	60	820	450	40
2800	2820	3180	3070	56	64	820	450	40
3000	3020	3405	3290	60	68	840	450	40

The above data is for reference only, we can also customize according to your needs.
If you want to know more details of our products,pls click here to contact us!Production process

products application

This product is suitable for conveying sea water, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil,
refined oil, air, gas, temperature is not higher than 250ºC steam and granule powder and other media.

Advantages:1). Qualified detachable double flange power delivery joint Supplier in China's west to east gas pipeline project;(2) Strong R&D strength;(3) Strict Quality Control System;(4) Perfect Test System;(5) Professional After-sale Service Team;6) OEM Service.

Company Profile

Gongyi Ruixuan pipeline equipment factory was founded in 1996.It is an excellent enterprise specializing in manufacturing and selling pipe fittings.It's located in Xicun village ,Gongyi city,Henan province ,the concentrated area of pipeline equipment industry in China.The company factory is located in Xicun town pipeline equipment industrial park.It covered an area of20000 square meters.
At present, the company has the production capacity of pipeline equipment with a maximum diameter of 4000mm, and its main products are: Steel expansion joint, flexible waterproof sleeve, large diameter flange, double flange force transfer expansion joint, large deflection loose sleeve compensation joint, spherical compensation joint, sleeve compensator, bellows compensator, non-metallic compensator, rubber expansion joint, DC medium no thrust sleeve compensator, flexible expansion pipe and other pipeline equipment. The annual production capacity is 30 million sets. The flexible telescopic pipe equipment is mainly used in the pipeline crossing different geological structures under different conditions and the application of pipe installation drop, reduce or avoid the impact of geological settlement and crustal activity on the pipeline, so that the construction unit can save more than 50% of the cost when purchasing the equipment. The rubber expansion joint series products of the company, the maximum production diameter of 3600mm, have been applied in millions of units of thermal power projects in China for many times, and have been praised by the users.
The company passed ISO9001:2008 quality management system certification in 2009 and ISO14000:2004 environmental management system certification in 2009. The company has a strict quality control system, standard production process, standard factory inspection hand section, to ensure that every product meets the national standards and customer requirements.
Business philosophy: responsible production of products, return the trust of customers; To build a community with a sense of belonging and appreciate employees' contributions; Make a contribution to the society of enterprises, give back to the good times. Gongyi Ruixuan pipeline equipment factory is willing to work with friends from all walks of life hand in hand, mutual support, create a better future!

CertificationsexhibitionFAQQ1: What is the Warranty for the double flange delivery joint ?
A1. For the double flange delivery joint ,we have 18 monthes warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
double flange delivery joint
Q2: What is the specific size of the double flange delivery joint ?
A2.We have different size of mold,so we have some special length for every size. For the rare requirements of our customers,we are able to design model to produt it.
double flange delivery joint
Q3: What is the payment terms?
A3.You can through T/T,Western union ,Paypal ,Escrow.OA/Cash/Paypal/Credit/Alibaba Escow/Visa/Master Card .Normally 30% deposit,and 70% balance payment before shipment
double flange delivery joint
Q4.Can i get a sample of double flange delivery joint ?
A4.Of cause you can! we provide sample to every customer.If you are interest in our company enquiry,we will try our best to meet your requirements.
double flange delivery joint
Q5. Is that your company have another products for us to choose from?
A5: Our main products include rotary joint, telescopic expansion joint , oil hose ,metal hose and hydraulic hose
double flange delivery joint
Q6. What is the our MOQ for the double flange delivery joint ?
A6: Our MOQ is 1 piece of double flange delivery joint . You can also get it as a sample to test our product quality.
double flange delivery joint
